Rubix iO: Power Requirements and Wiring
Power Supply Requirements
Power Supply Wiring
The IO Module is powered by a 24v AC or DC power supply on the `24 AC/DC POWER` terminals as shown below.

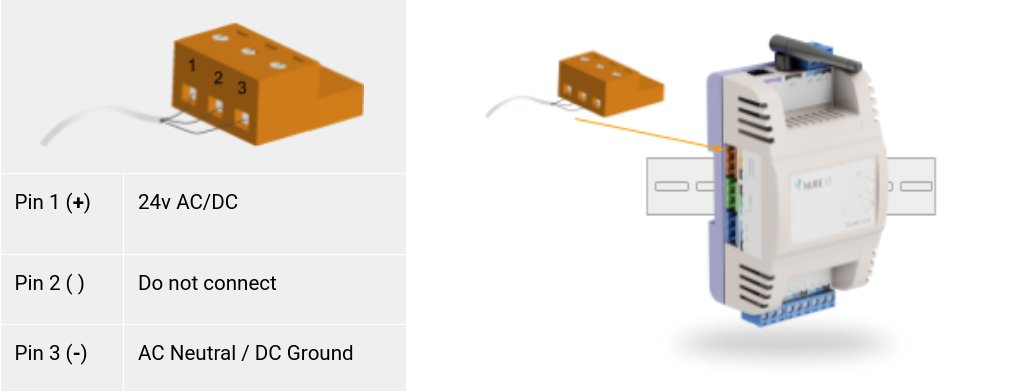

Wiring Diagram:
