Warning:  Power requirements are different for older models of Rubix Compute. To determine the device version of Rubix Compute, see: Rubix Compute: Identifying Hardware Version

If Rubix Compute hardware is Version 0.8 or below, DO NOT FOLLOW the instructions below and see: Rubix Compute: Legacy Power Requirements and Wiring

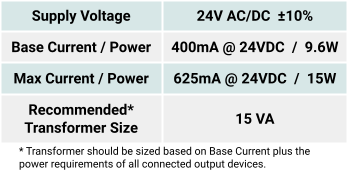

Power Supply Requirements



Power Supply Wiring

The Nube-iO Rubix Compute Gateway Controller is powered by a 24v AC or DC power supply on the `24 AC/DC POWER` terminals as shown below.

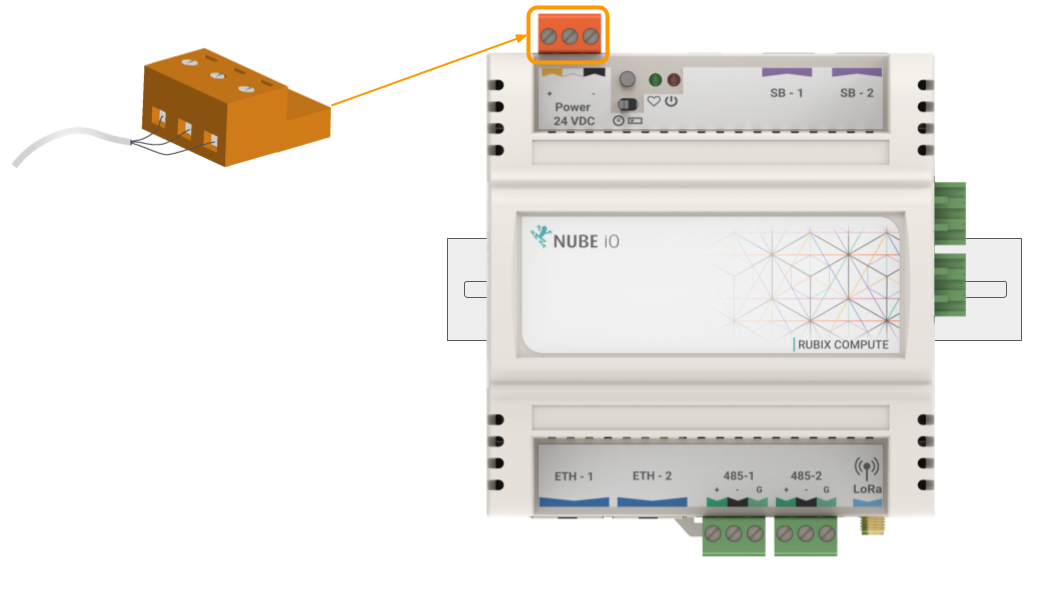

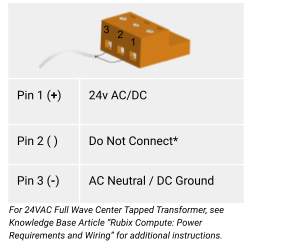

Wiring Diagram
