Rubix CE: Cloud VPN

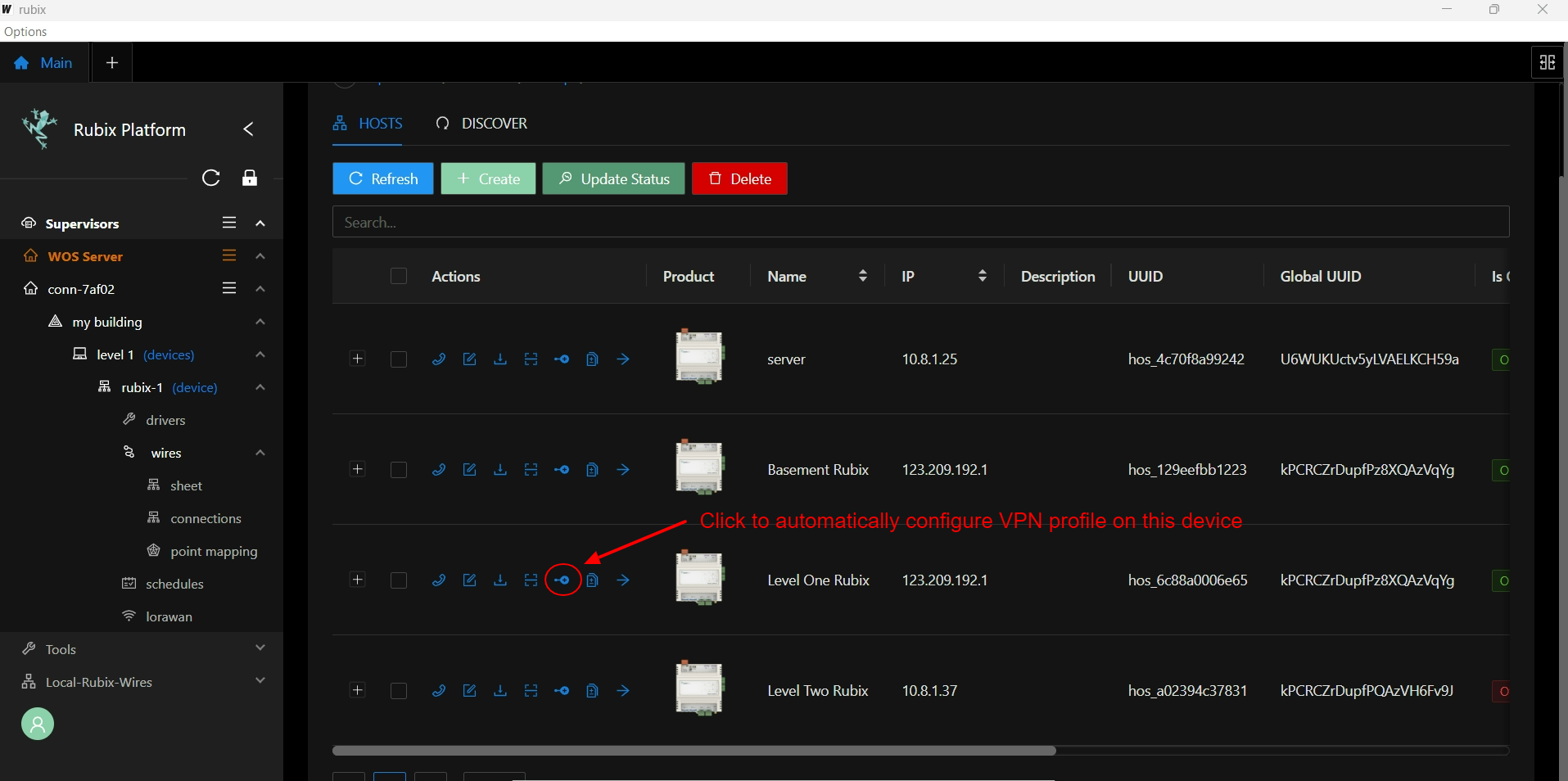

Installing the VPN service on a Rubix Compute

Important things to note before proceeding with the setup:

1. A Cloud environment must be provided / set up by Nube iO

2. The Rubix Compute gateway needs to be on a public IP (meaning the IP address is available on the internet)

3. You must have access to the router to setup some temporary port forwards

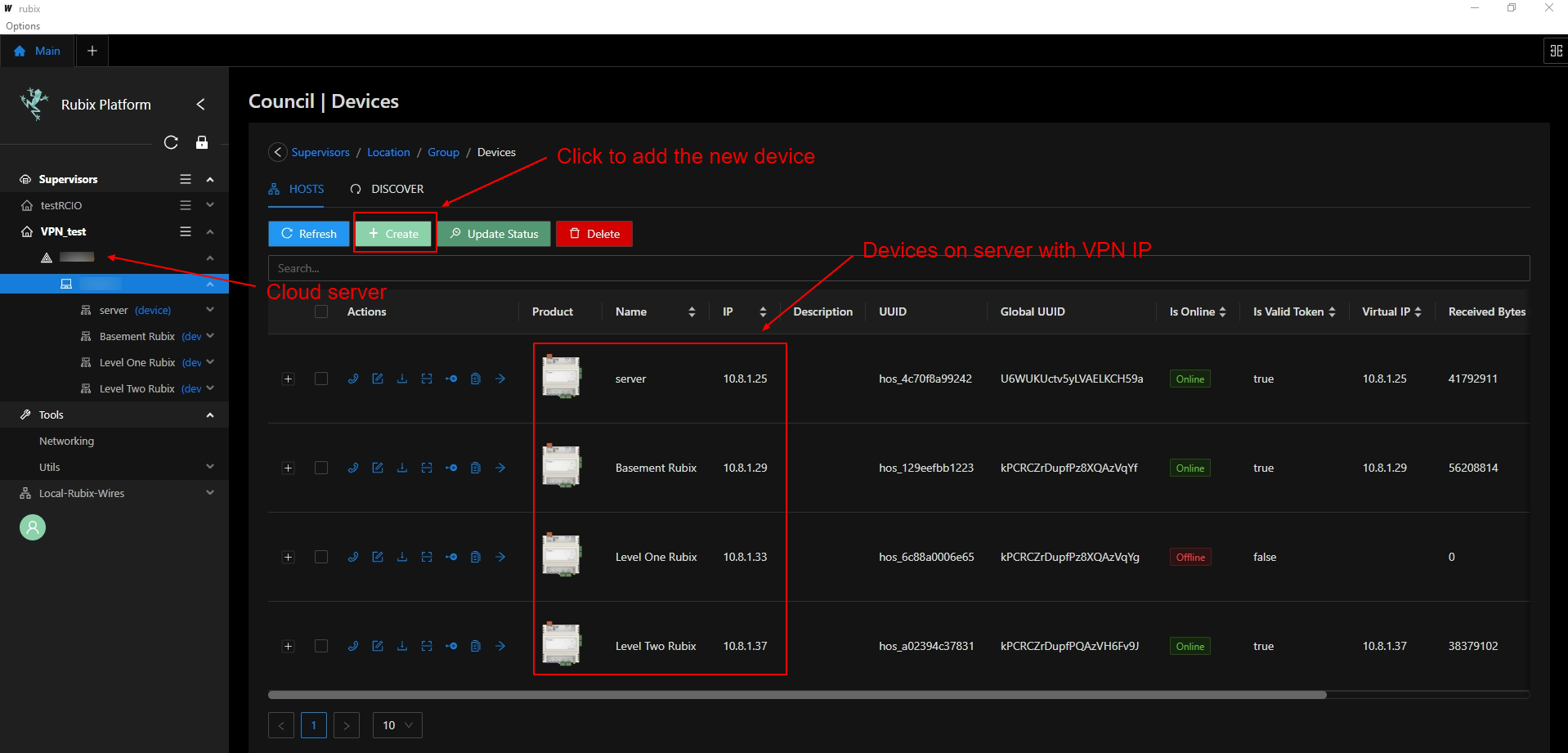

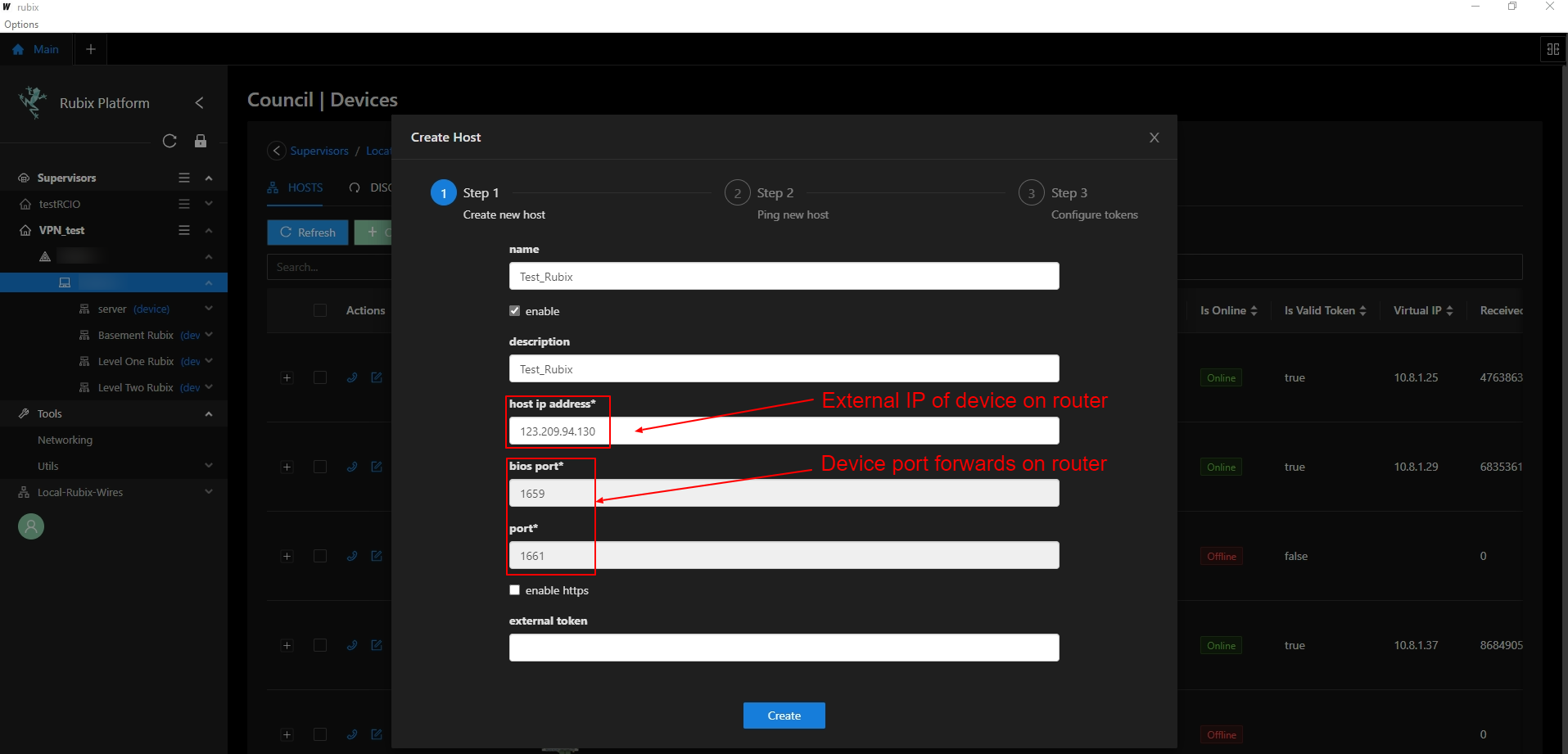

Step 1: Add the host with a with a public IP

To set up the VPN we need a public IP address and to make sure some ports forwards are setup on the router.

Port forwards needed:

- 1661
- 1662
- 1659

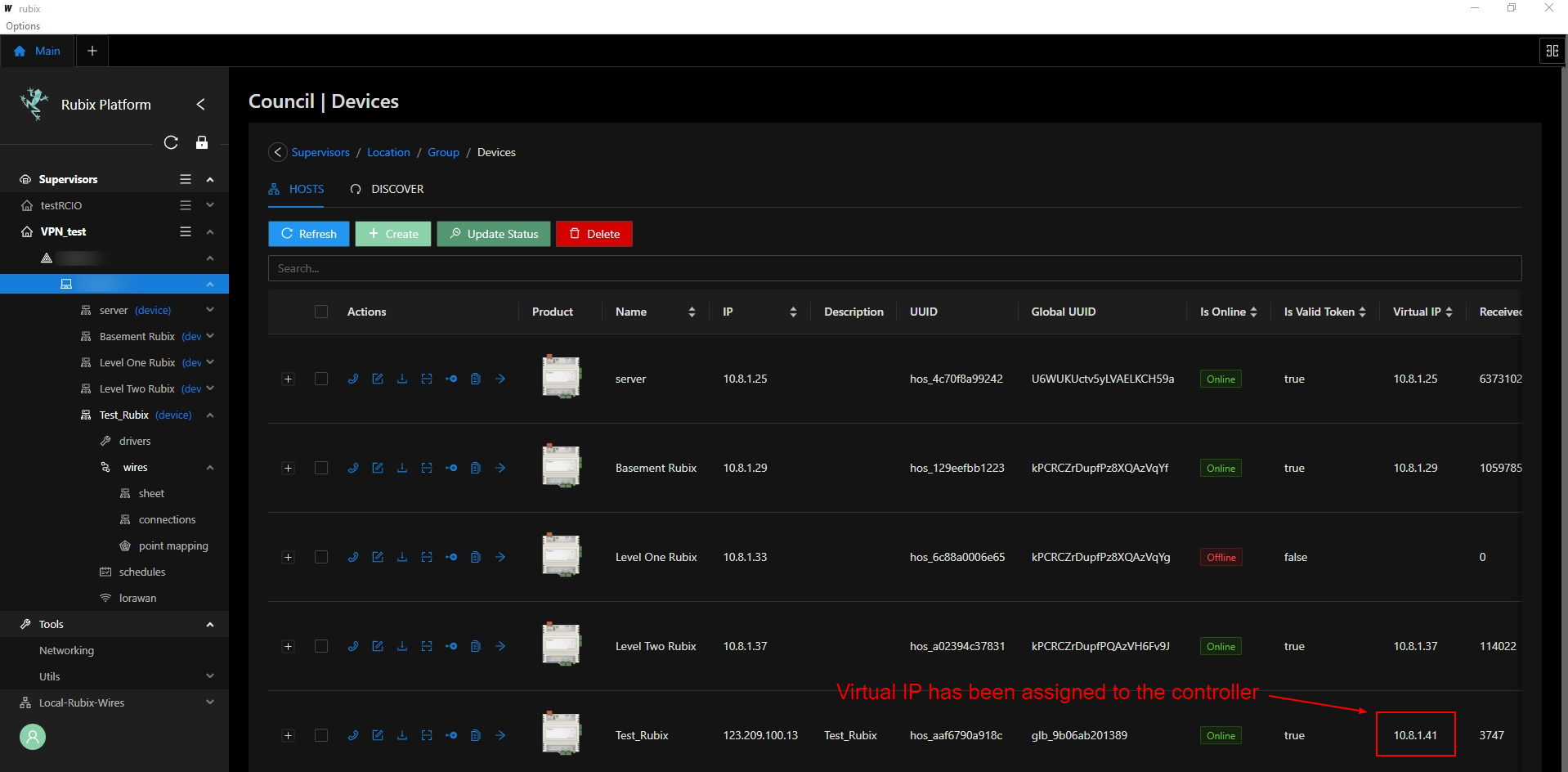

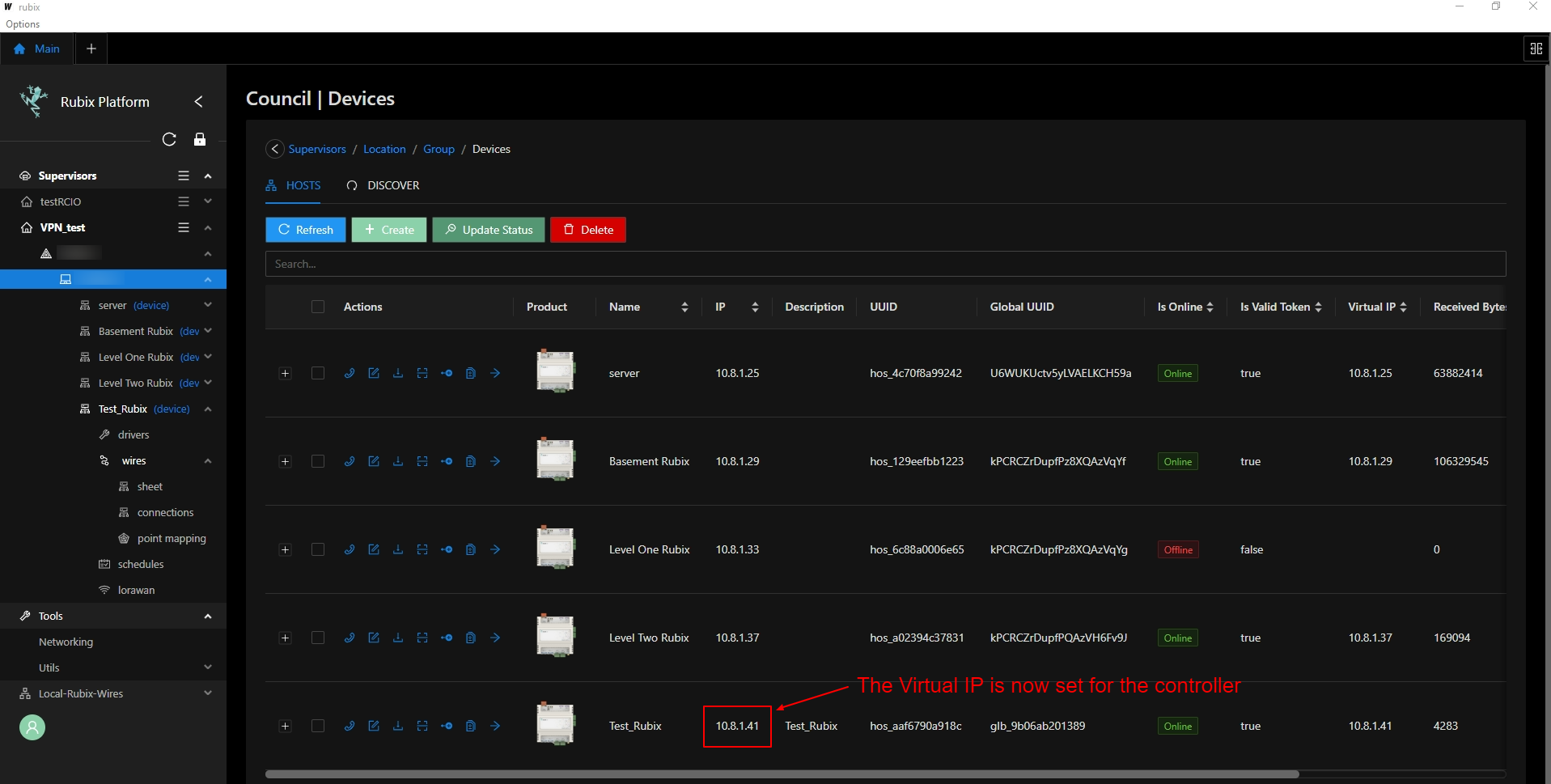

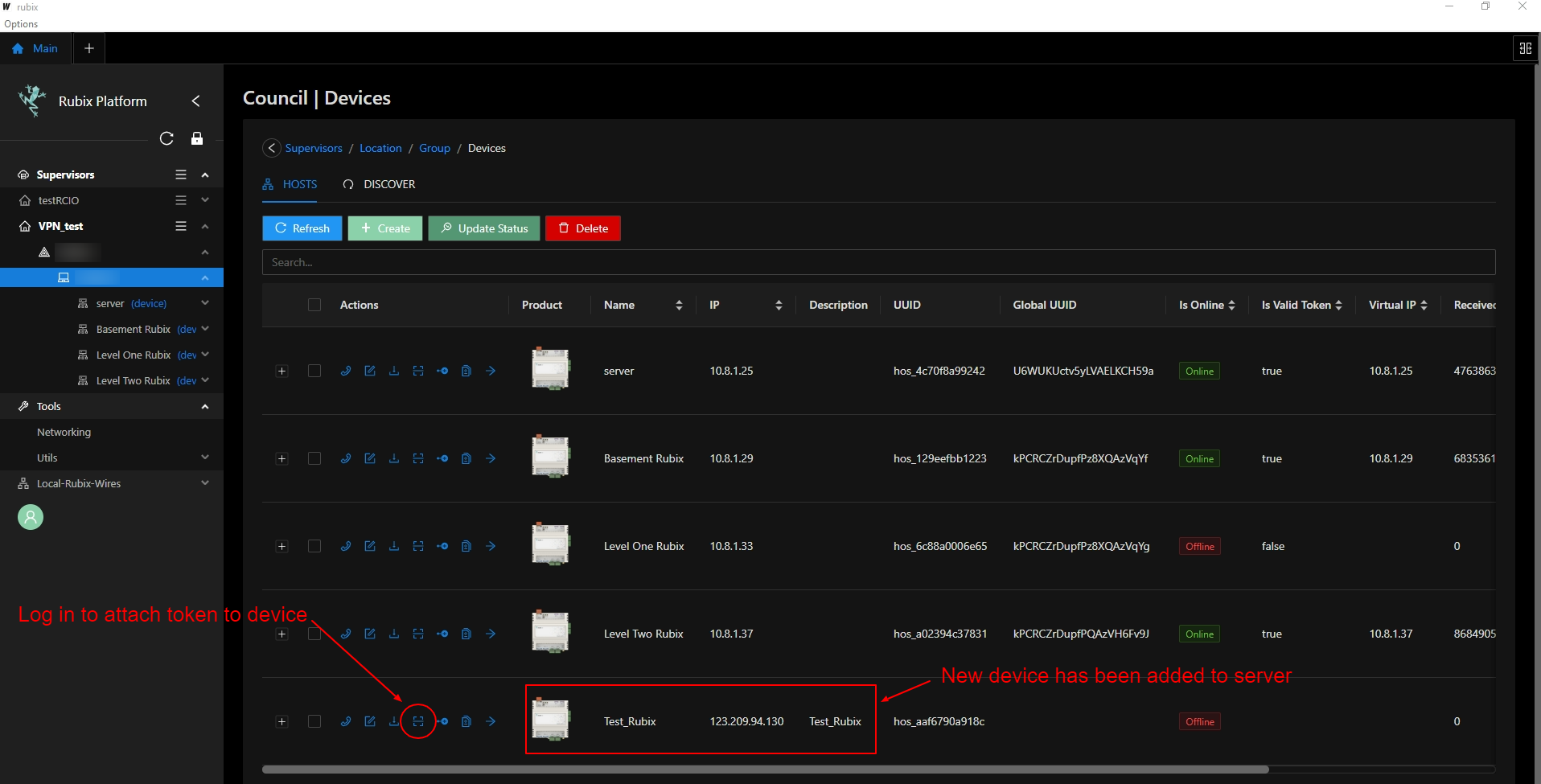

Once successful, click the 'update status' and then 'refresh' to see the controller's new virtual IP.  Allow about 60 seconds for this process.
