Rubix CE Overview

Rubix CE: Overview

Rubix Computer Edition (CE - Overview)

Rubix Platform CE is Nube iO's new desktop software designed for offline programming and product management.
Built to be fast, lightweight and portable, it allows users and technicians to configure and modify remotely without requiring a constant internet connection.

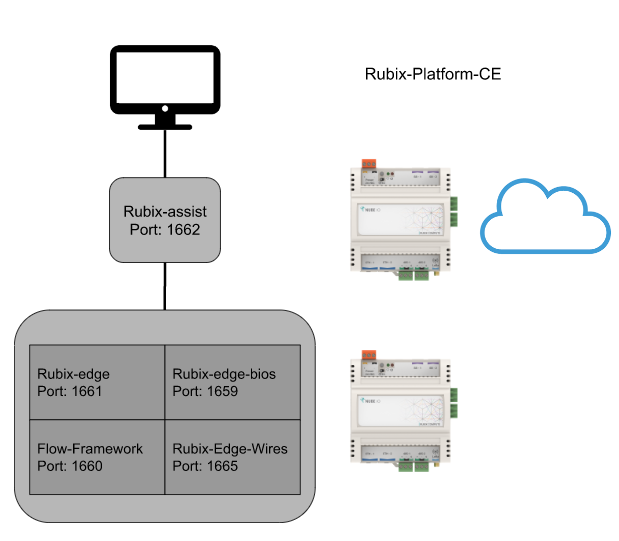

Stack overview

Rubix-Assist

Rubix-Assist is used to manage a group of Rubix-computes, Rubix-assist can either run in the cloud or on a single Rubix-compute.

Rubix-Assist performs tasks like:

  • Updating Rubix-computes apps

Runs in the cloud or on a Rubix-compute


Rubix-Edge

Rubix-Edge is used to connect to rubix-assist

Rubix-Edge performs tasks like

  • Updating rubix-computes apps

  • Updating the device networking, time and firewall

Runs on a rubix-compute


Flow-framework

Flow-framework is used for managing protocols like lora, bacnet

Flow-framework performs tasks like

  • Scheduling

  • Connections to the Nube-IO cloud

  • Protocols like Lora, Modbus and BACnet

Runs in the cloud or on a Rubix-compute

​

Rubix-Edge-Wires

Rubix-Edge-Wires is a building automation control runtime for controlling HVAC equipment, lighting. Rubix-Edge-Wires uses a flow based programming runtime

Rubix-Edge-Wires  performs tasks like

  • Scheduling

  • Connections to the Nube-IO cloud

  • Protocols like lora, modbus and bacnet
