Rubix CE: LoRaWAN Integration

Rubix CE: LoRaWAN Integration

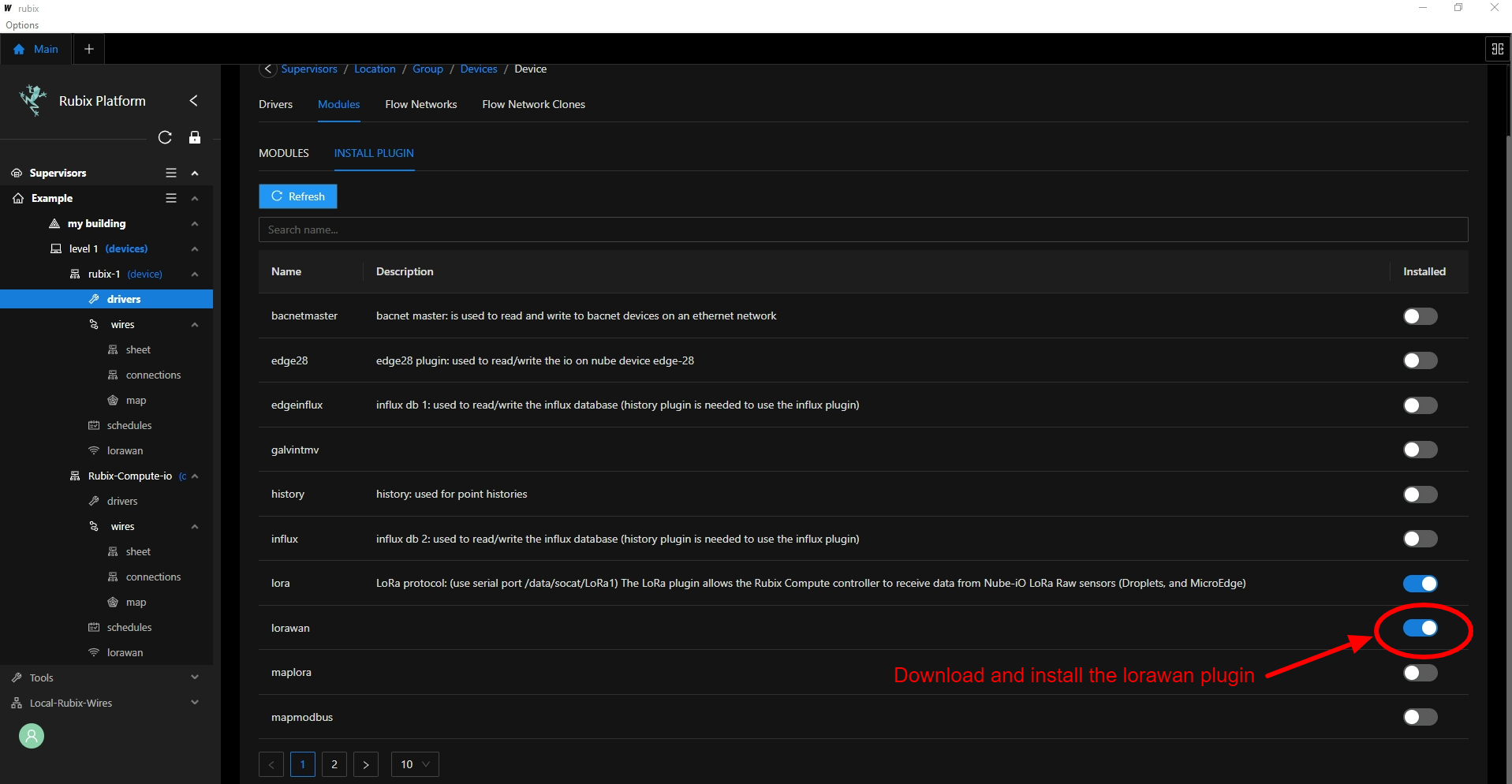

Step 1: At the device level, click 'drivers' on the sidebar, and then under the 'modules' tab, toggle the switch to download the LoRaWAN plugin

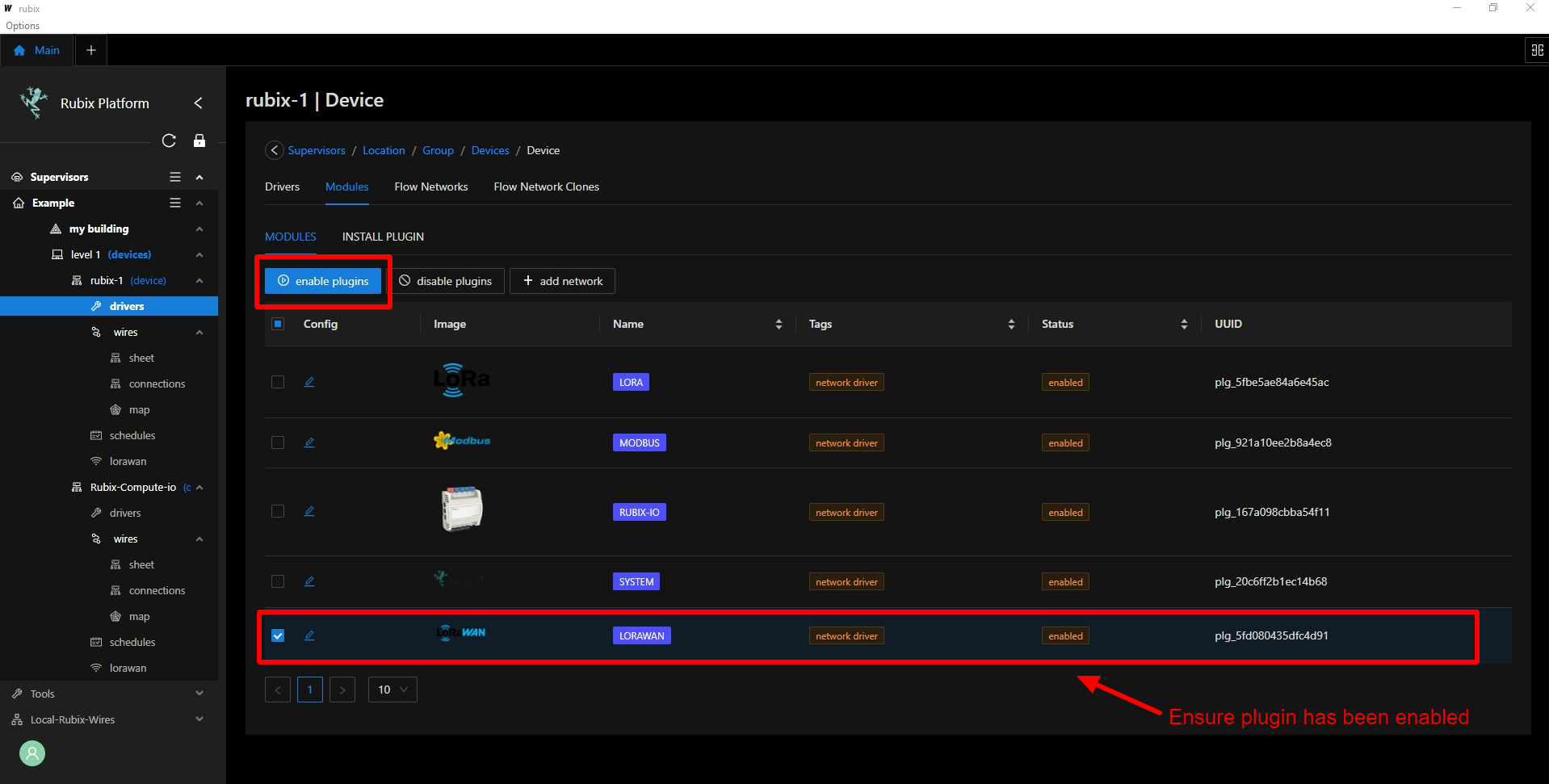

Step 2: Ensure the LoRaWAN plugin is enabled

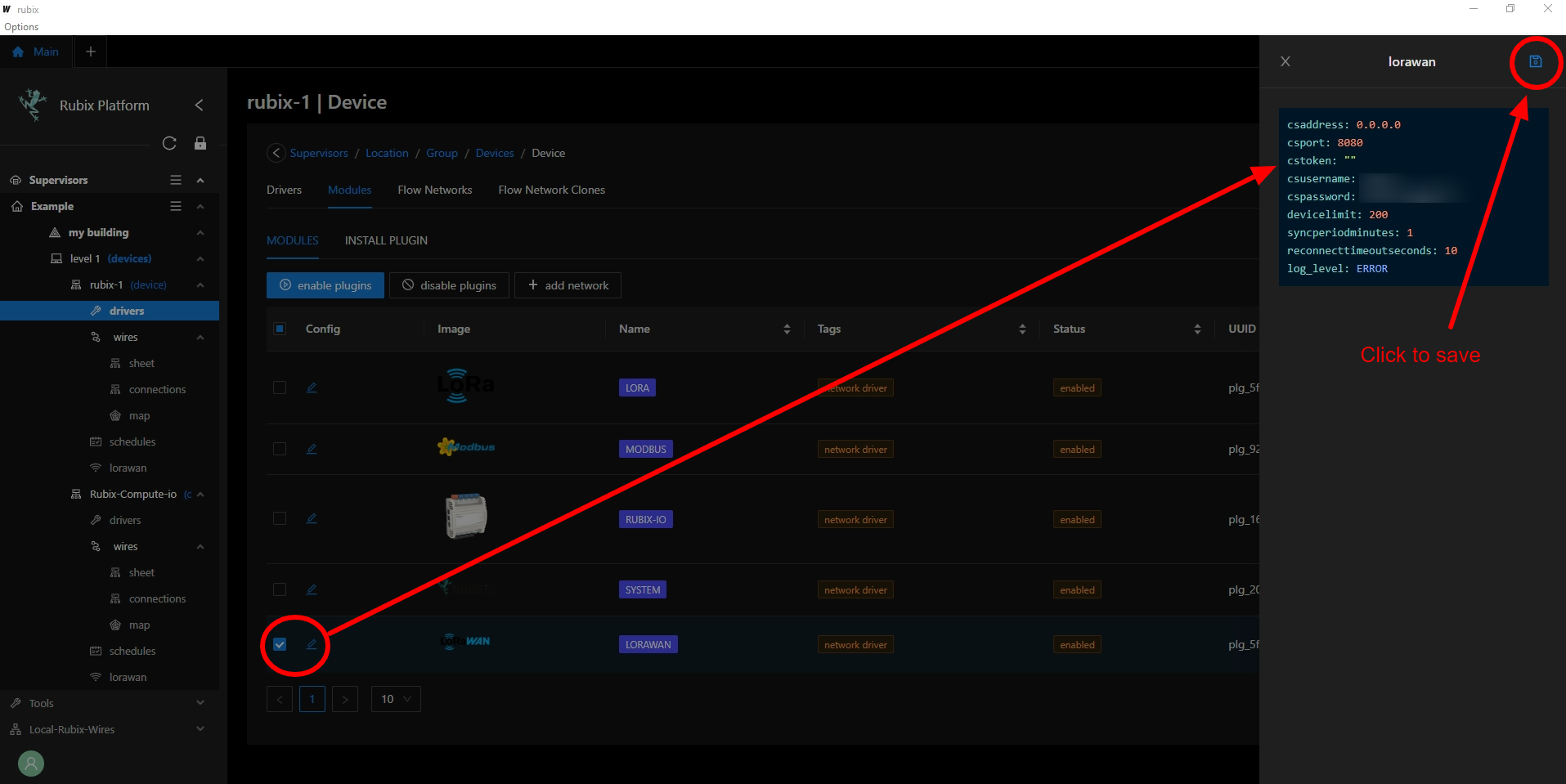

Step 3: Click the config button and then enter the Chripstack username and password in the config file:
login: user@nube-io.com
password: N00BWAN

Click the save button the top right to continue.

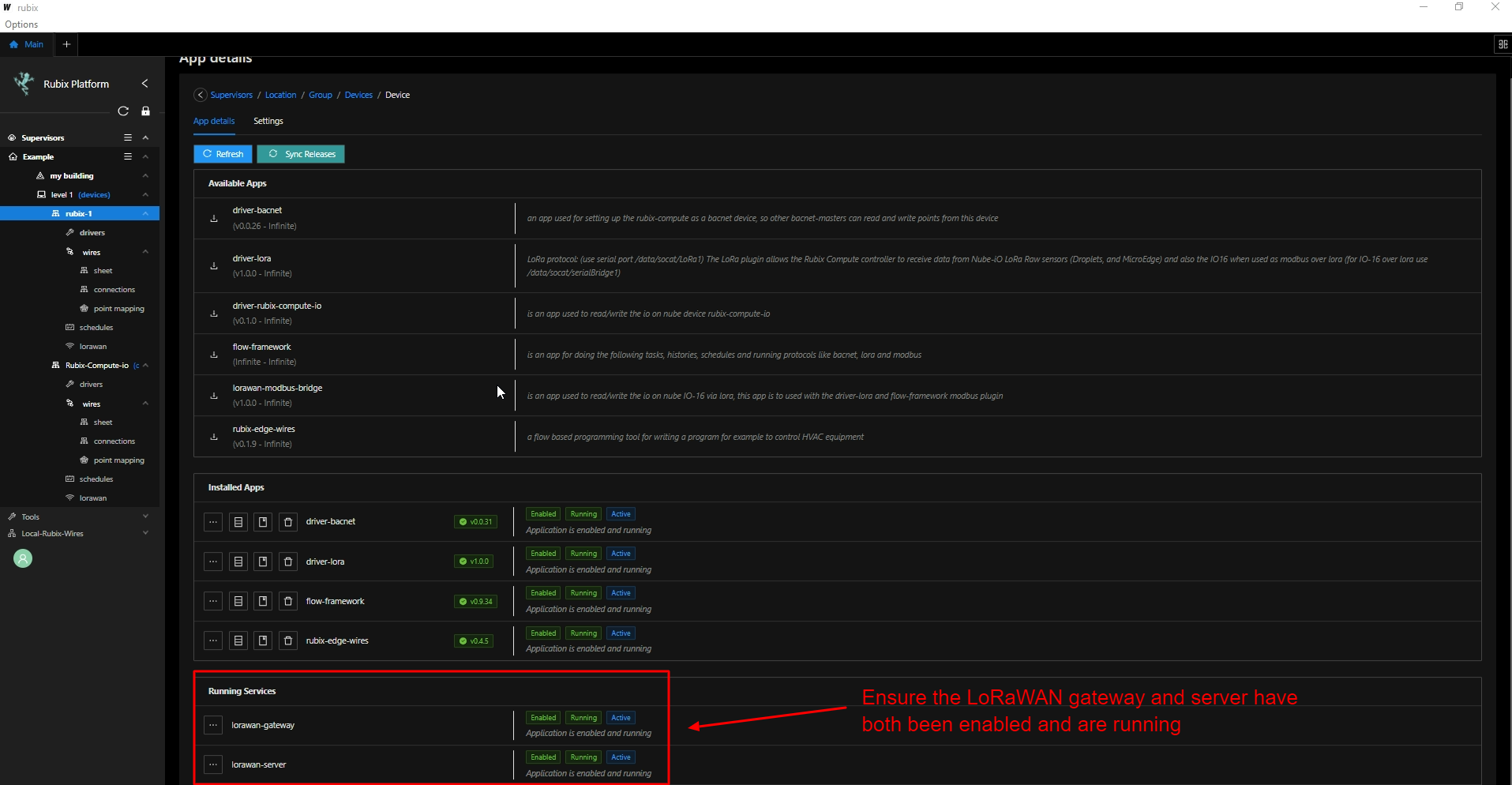

Step 4: Ensure that the LoRaWAN Gateway and Server are both enabled.

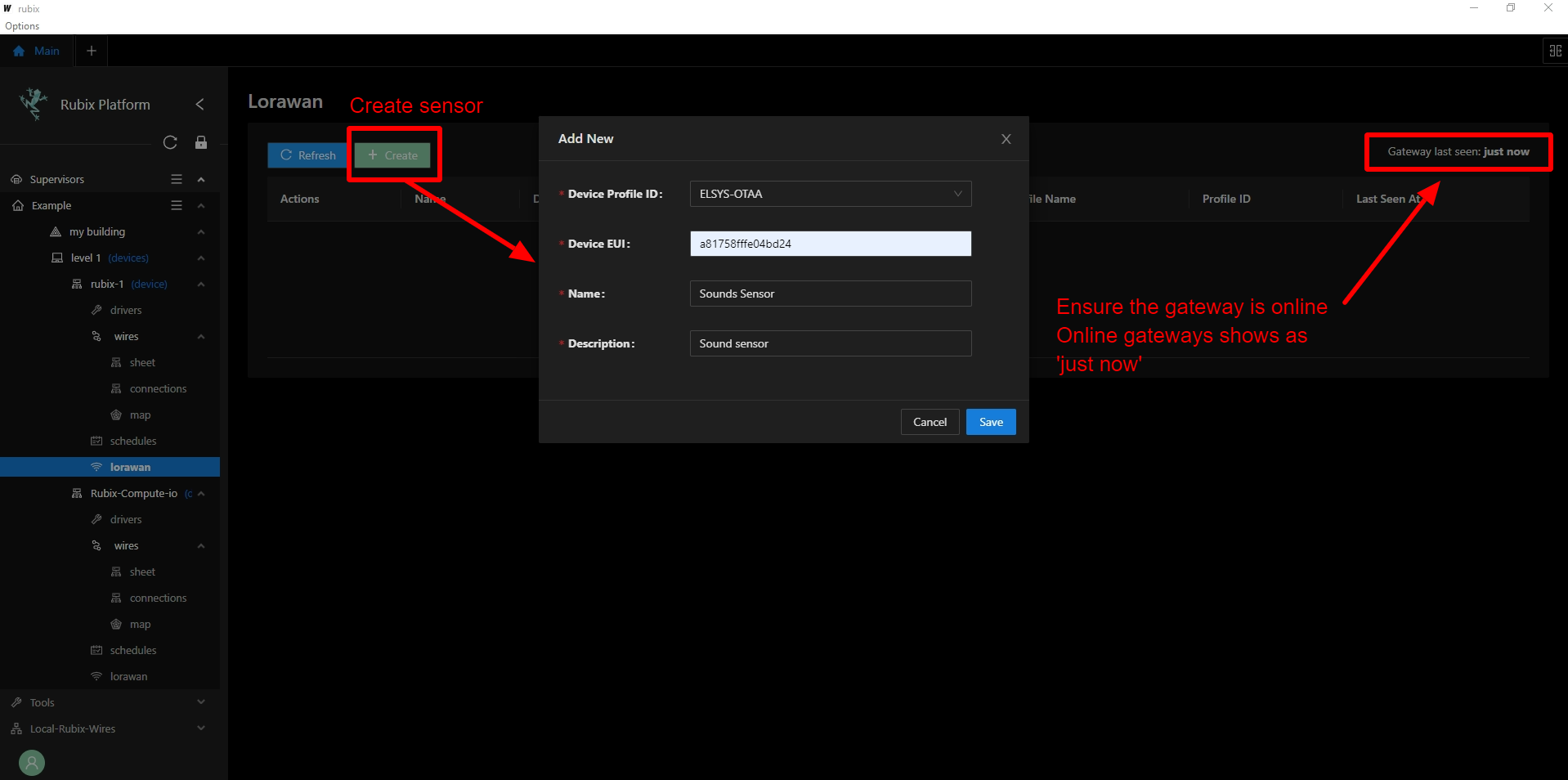

Step 5: In the sidebar, click the LoRaWAN tab and check that the Gateway is online. The message should display 'just now' if is connected and online

Step 6: Click the 'create' button to add a sensor, then populate the respective details, remembering to select the applicable 'device profile ID' for the corresponding LoRaWAN sensor

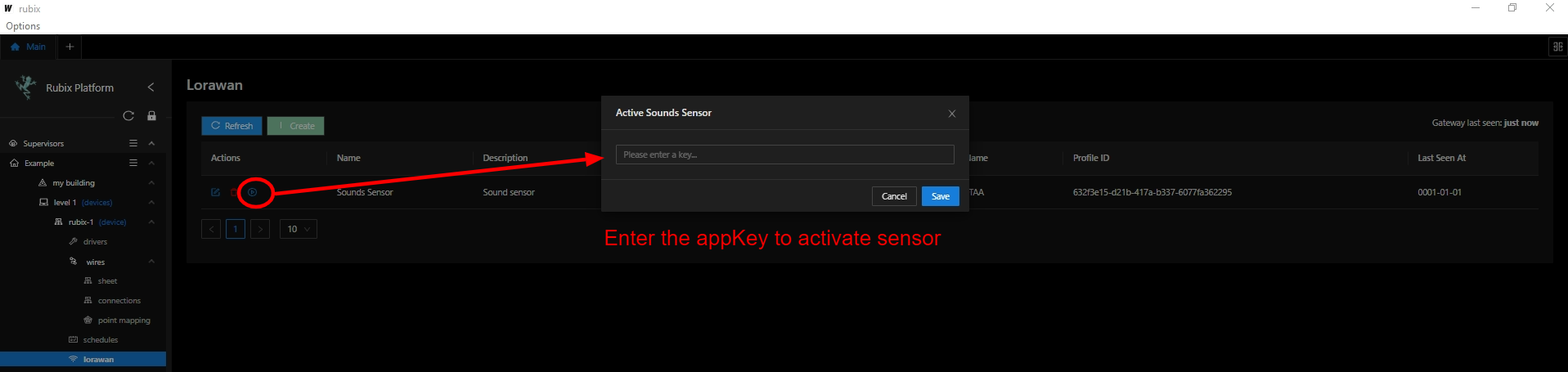

Step 7: Click the play icon to enter the application key. This application key is unique

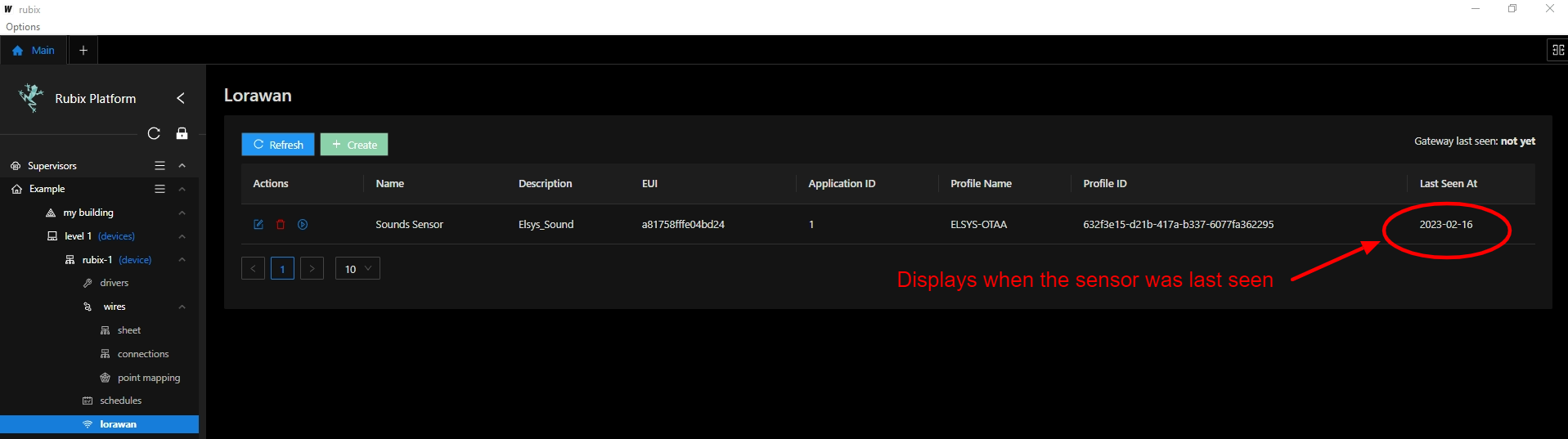

If successful, the sensor should appear with the latest sensor push time

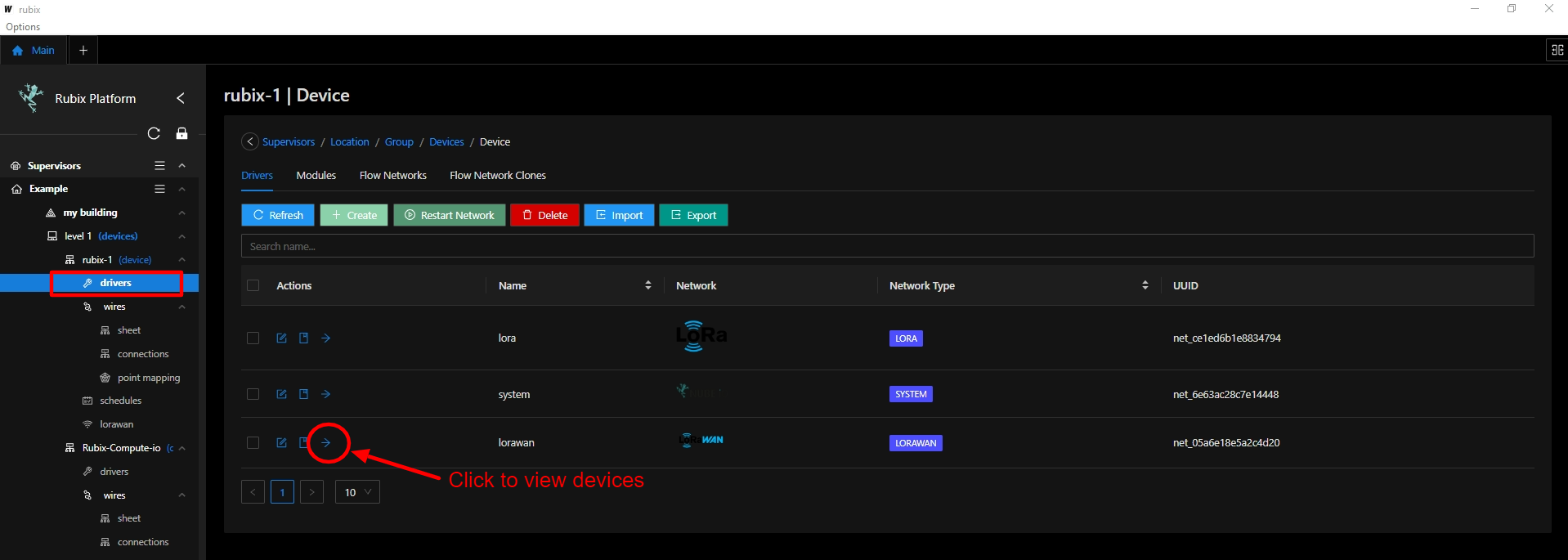

Step 8: Click back into 'drivers' in the side bar and click the 'lorawan driver' to see all LoRaWAN sensors

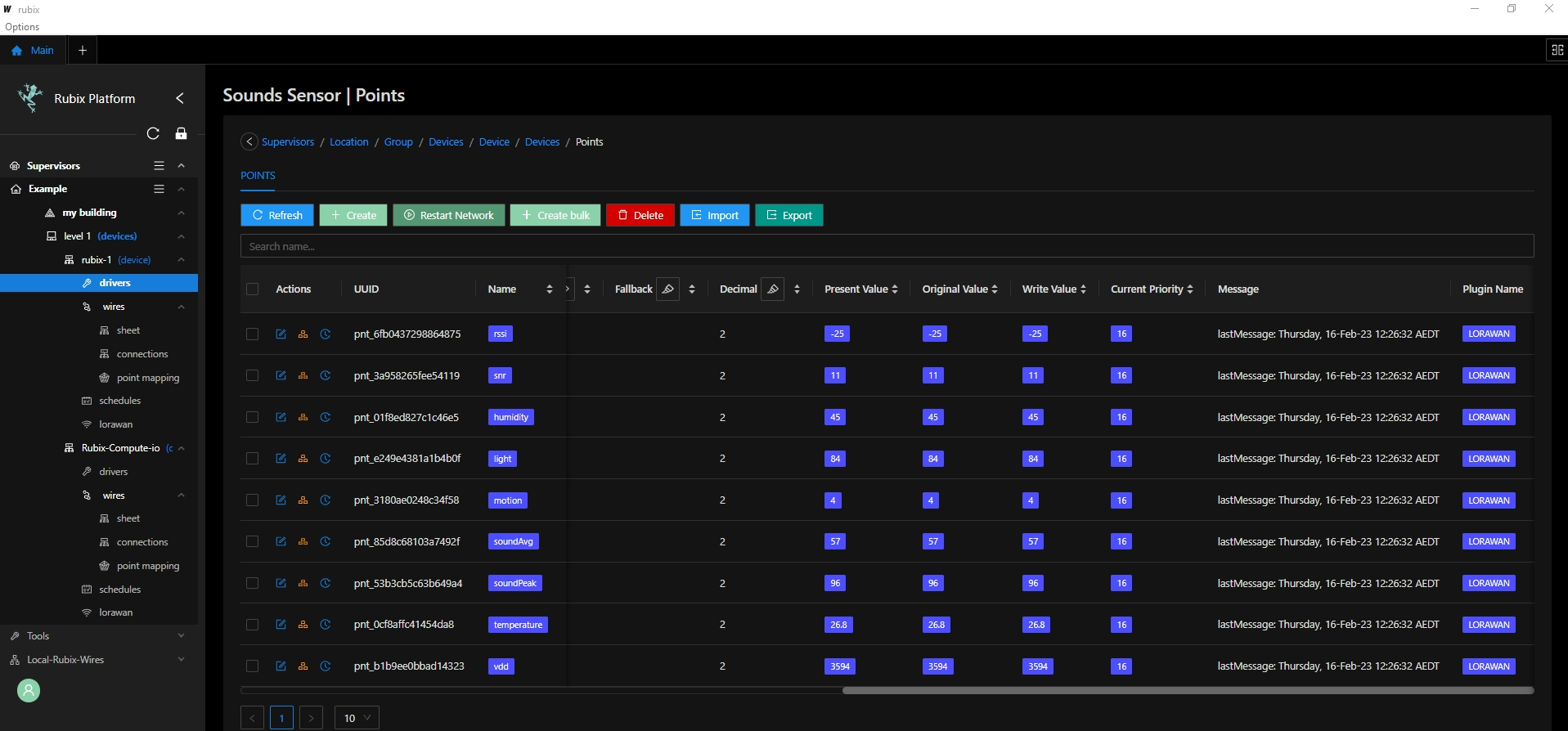

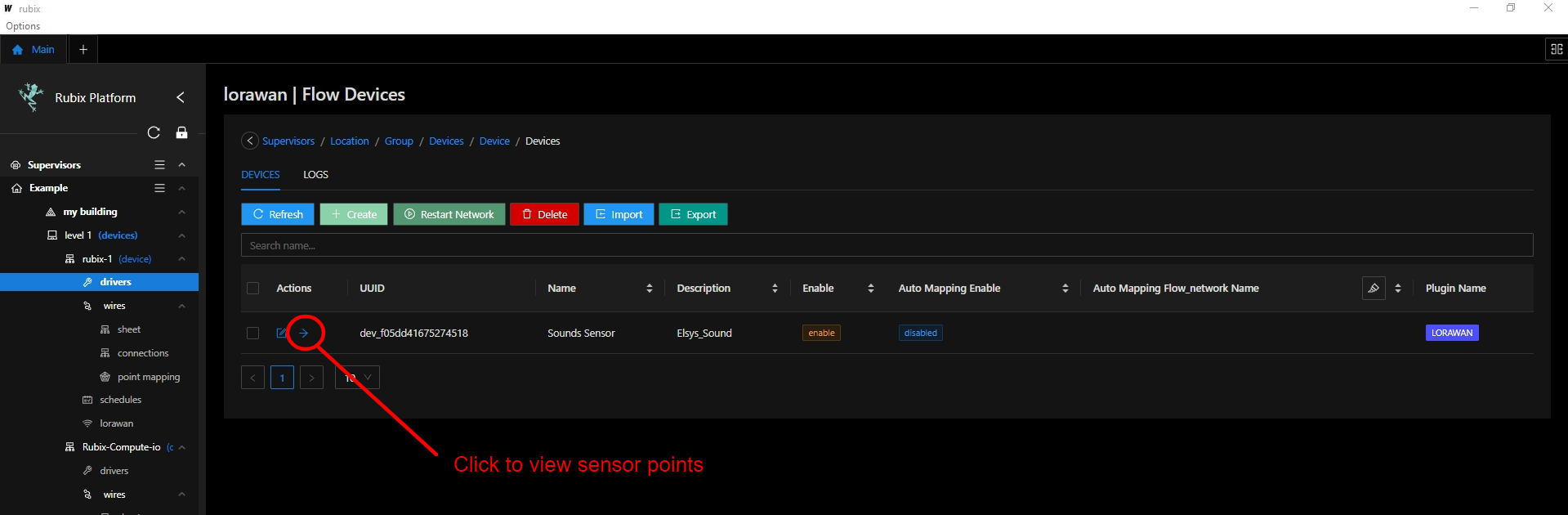

Step 9: Click the desired sensor to the sensor's LoRaWan sensor points




Integrating points into Rubix-Edge-Wires

To further engineer these points or to combine the points with other different communication protocols,  follow the instructions here on how to integrate the points via Rubix-Edge-Wires.
